Vertical Storing Dock Levelers

Loading Dock Equipment

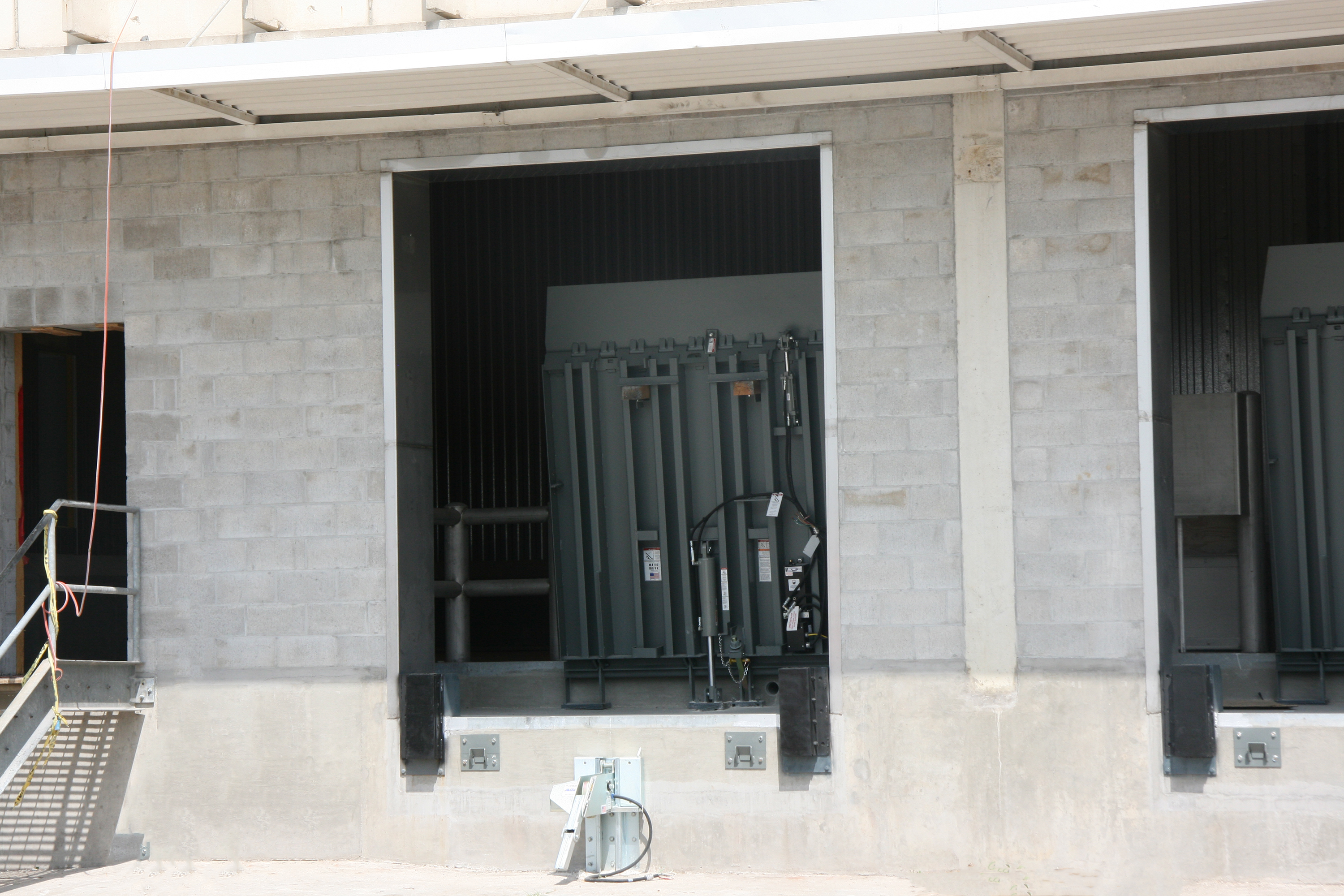

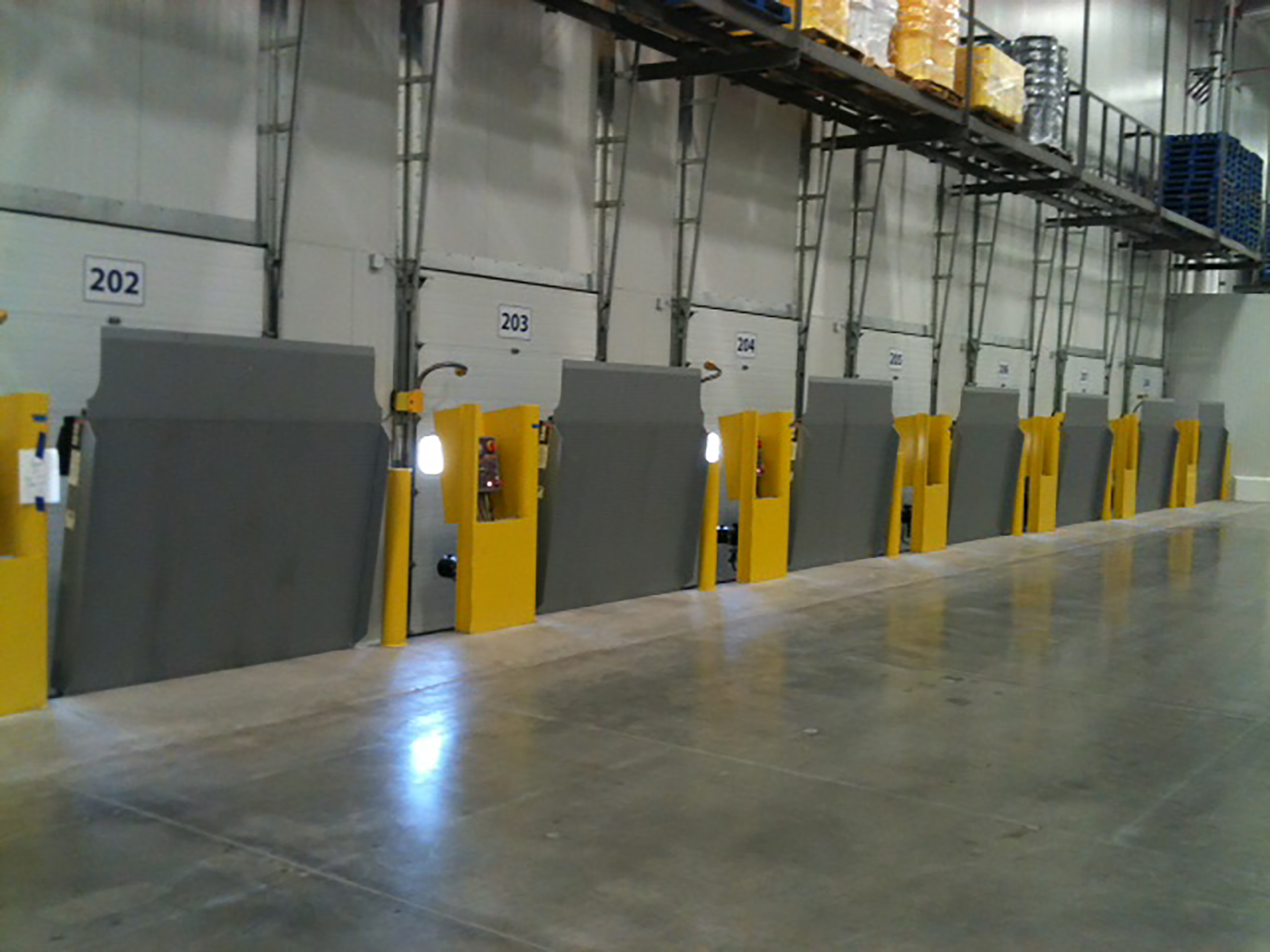

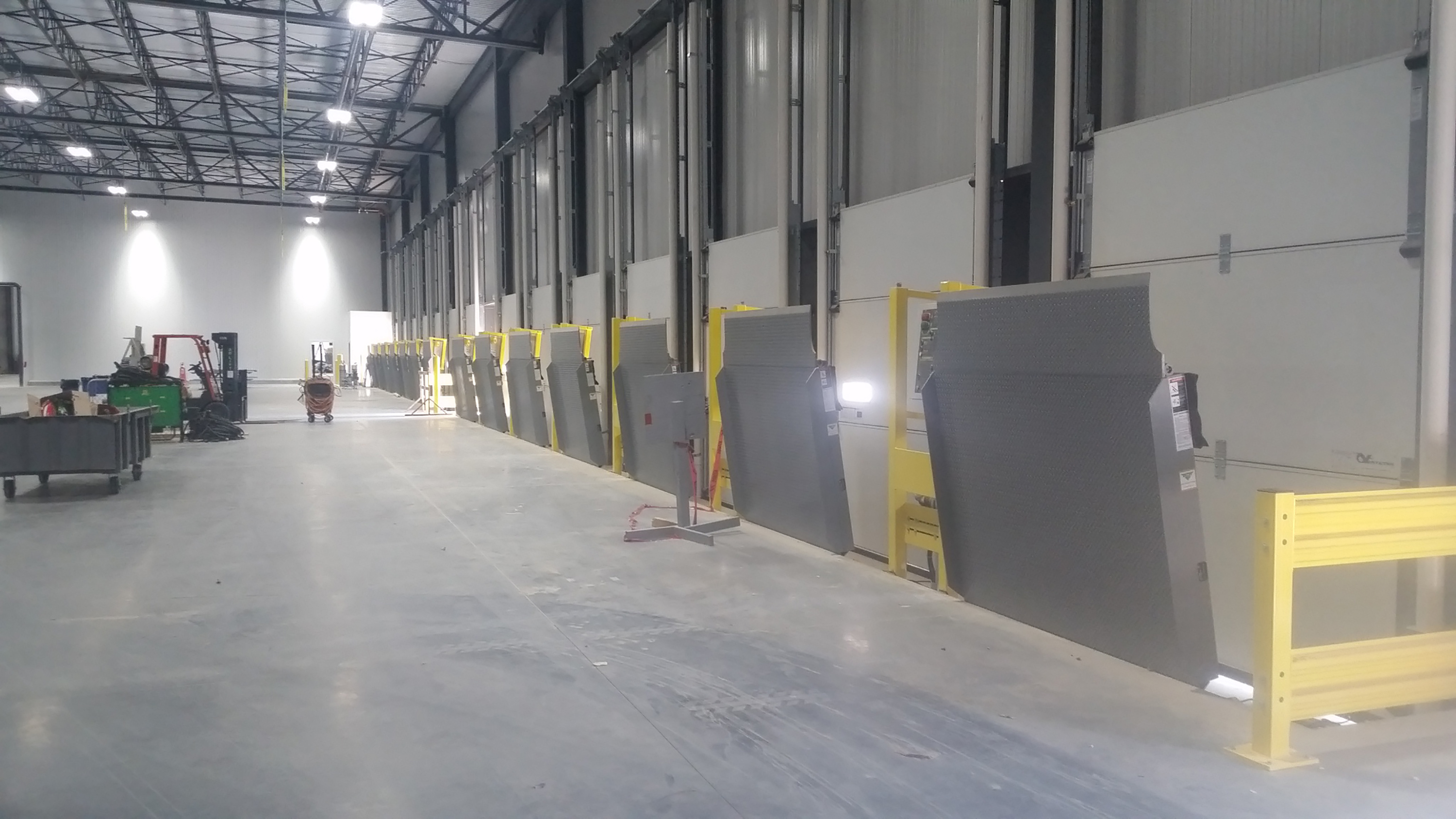

Vertical hydraulic dock levelers offer unmatched environmental control for customers with food storage or temperature sensitive applications. By storing in the vertical position, it allows the dock door to form a perfect seal to the pit floor. These levelers come in 6′, 66″, and 7′ standard widths, and 5′ and 6′ standard lengths. Other lengths may be available upon request. Standard capacities are 40K to 50K CIR (Comparative Industry Rating) depending on the model.


  • Easy to operate
  • Improves internal temperature control
  • Reduces the risk of door damage
  • Minimizes debris entry
  • Stationary side tapered toe guards have high visibility OSHA safety striping
  • A maintenance strut supports the deck for safe under-deck maintenance and inspection


  • Deck will flex up to 4″ (101mm) when under load
  • Constant pressure style down button ensures controlled lowering during operation
  • Two (2) bumpers
  • 1 HP motor and equipped with overload protection
  • One-piece hinge pin
  • Minimum of 6 u-beam channel deck supports
  • 3″ high runoff guards
  • Hydraulic system
  • Double-acting lip cylinder
  • Hydraulic fall safe
  • Optional weatherseal kit


  • Cold Storage
  • Heavy-duty Industries
  • Refrigerated Warehouses
  • Loading/Shipping Docks
  • Trucking/Distribution Centers
